Overview of Octane Vectron: Procedural Fractal SOP

Integrating Octane Vectron into an enterprise visual effects and motion design pipeline represents a fundamental departure from classical polygonal rendering. For over three decades, computer graphics has relied on approximating 3D surfaces with flat triangular facets. While effective for rigid hard-surface props and skinned characters, polygonal meshes fail catastrophically when attempting to represent infinitely recursive mathematical structures:

• The Micro-Polygon Memory Wall: Meshing a 3D fractal such as a Mandelbulb or Menger Sponge into explicit polygonal geometry requires billions of microscopic triangles. Exporting or caching such geometry generates file sizes exceeding hundreds of gigabytes, overwhelms CPU RAM during scene loading, and causes catastrophic GPU Out-of-Core crashes when compiling the Bounding Volume Hierarchy (BVH).
• The Vectron Vector Paradigm: Developed by OTOY, Octane Vectron completely eliminates polygons, triangles, and voxel caches. Instead, geometry is defined purely as mathematical formulas known as Signed Distance Functions (SDFs) evaluated in real time on the GPU.
• Infinite Procedural Detail: Because an SDF evaluates mathematical equations continuously at the sub-pixel level, Vectron geometry possesses infinite resolution. A camera can zoom from an orbital galactic distance down into microscopic molecular folds, and the surface will never exhibit polygonal edges, faceted silhouettes, or texture resolution limits.

Inside the OctaneRender path-tracing core, evaluating mathematical vector geometry bypasses the traditional geometry pipeline entirely:

1.1. Ray-Marching Sphere Tracing Mechanics

The mathematical engine powering Octane Vectron relies on Sphere Tracing (an optimized form of ray marching):

• The Signed Distance Field: For any point in 3D space P(x, y, z), a Signed Distance Function returns a single scalar value d = f(P) representing the shortest Euclidean distance from that point to the nearest geometric surface. If d > 0, the point is outside the object; if d = 0, the point lies exactly on the surface; if d < 0, the point is inside.
• Sphere Tracing Acceleration: When a camera ray is cast into the scene, Octane samples the SDF at the ray’s origin. The returned distance d defines a safe spherical radius where no geometry can possibly exist. The ray tracer immediately advances (marches) the ray forward by distance d in a single leap. This process repeats iteratively until the distance is smaller than a minute threshold (the hit threshold), at which point an intersection is confirmed and surface normals are computed analytically via mathematical spatial gradients (partial derivatives ∇f).

While Octane Vectron eliminates geometric polygon memory constraints, ray marching introduces unique mathematical artifact challenges that require calibrated technical management:

2.1. The Ray-Marching Step Length Dilemma

Sphere tracing assumes that the signed distance function is strictly Lipschitz continuous with a Lipschitz constant of 1 (meaning the distance function never changes faster than the actual physical distance moved in space). However, complex recursive fractals (such as high-power Mandelbulbs or intricate Julia iterations) possess extreme non-linear spatial compression:

• The Overstepping Trap: When ray marching traverses sharp internal folds, an uncalibrated sphere tracer can overestimate the safe distance d, causing the ray to leap right through a thin geometric crevice or penetrate inside the surface.
• Visual Manifestation: Overstepping produces black ring bands, missing fractal branches, or noisy temporal flickering along thin fractal edges during animation.
• The Step Scale Solution: In Vectron formula scripts, technical directors introduce a Step Scale (or Ray Marching Factor) typically calibrated between 0.5 and 0.8. This deliberately forces the ray to take conservative, shorter marching steps, guaranteeing that narrow fractal folds are never skipped.

2.2. Calibrating Ray Epsilon to Eliminate Surface Acne

Once a ray strikes a Vectron surface, secondary rays (shadow rays, diffuse bounce rays, and specular reflections) must be cast outward from the hit point:

• The Self-Intersection Glitch (Surface Acne): If secondary rays originate exactly at the computed surface coordinate, floating-point rounding inaccuracies can cause the ray to detect the very surface it just departed from, registering a false collision. This coats the fractal in dark, speckly noise known as surface acne.
• The Ray Epsilon Offset: In Render Settings > Octane Renderer > Main, the Ray Epsilon parameter defines the minimum distance a ray must travel before registering a valid hit. For Vectron fractals, maintain Ray Epsilon = 1e-5 to 1e-4. Setting Ray Epsilon too large creates ‘light bleeding’ and floating shadows; setting it too small triggers rampant self-intersection acne.

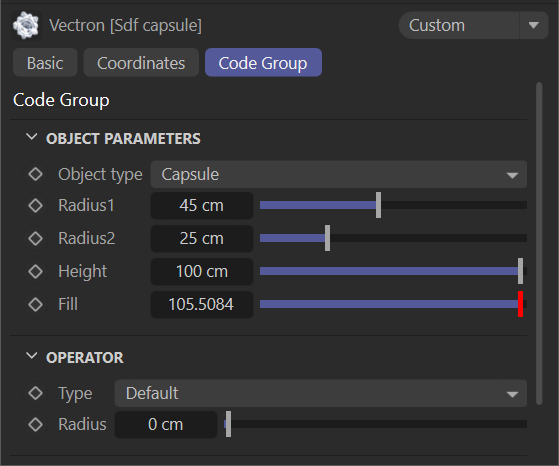

Octane Vectron operates via compiled formula files written in Open Shading Language (OSL). These scripts expose artistic parameters directly within the Cinema 4D Attribute Manager:

3.1. Major Mathematical Formula Archetypes

• The Mandelbulb (Spherical 3D Fractal): The three-dimensional analogue of the Mandelbrot set, constructed using spherical polar coordinate transformations. Driven primarily by the Power parameter (typically set to 8.0 for classic organic bulbous folds) and Max Iterations (governing detail depth, calibrated between 12 and 30).
• Quaternion Julia Sets (Hyper-Dimensional Slices): Four-dimensional fractals projected into three-dimensional space via quaternion algebra. Modulating the 4D constant components (C.x, C.y, C.z, C.w) creates mesmerizing, fluid morphing animations impossible in traditional geometry.
• The Menger Sponge (Infinite Recursive Architecture): A recursive geometric cubic sponge exhibiting infinite surface area and zero physical volume. Ideal for sci-fi megastructures, abstract alien architectures, and brutalist motion design backdrops.

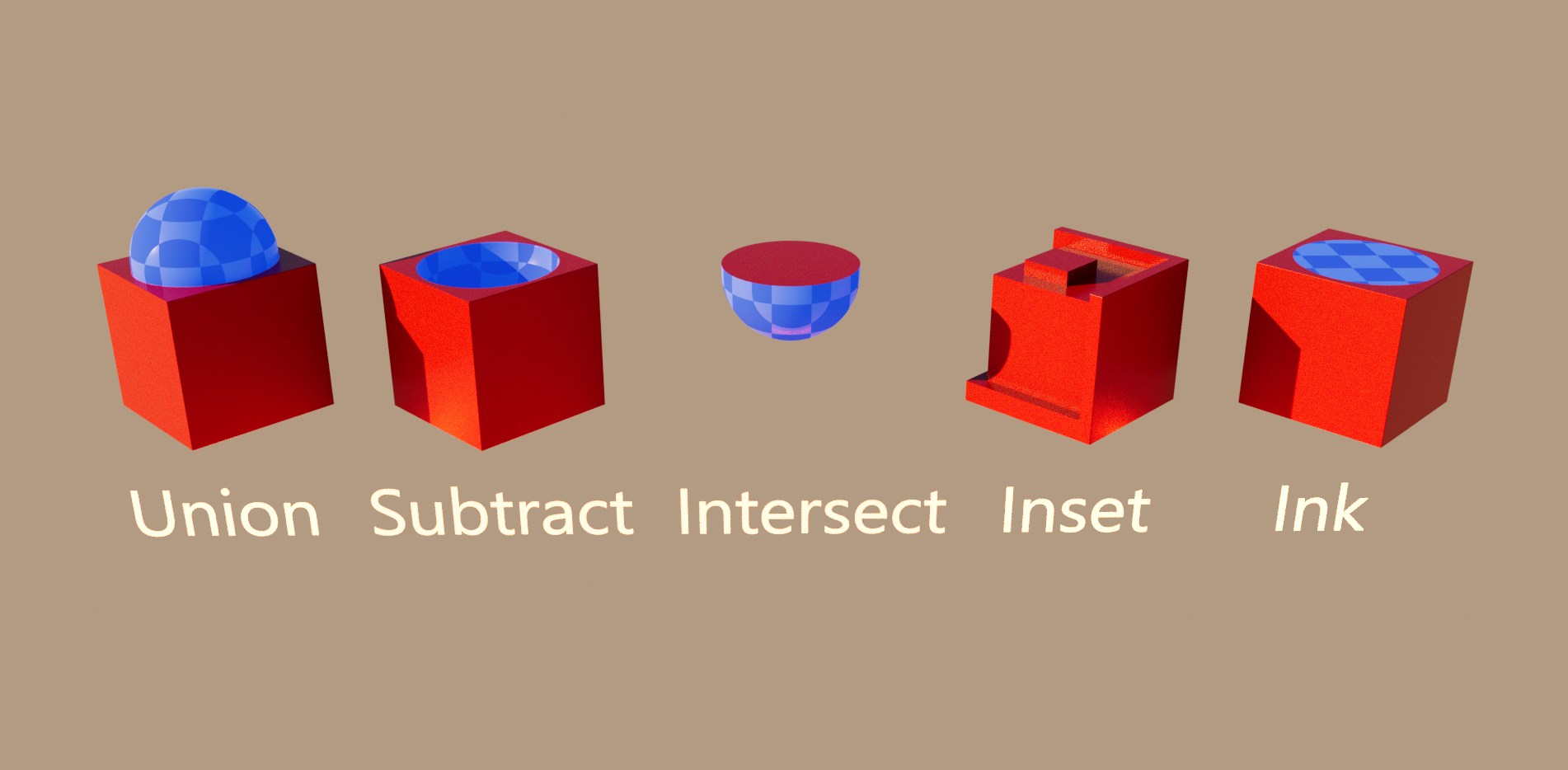

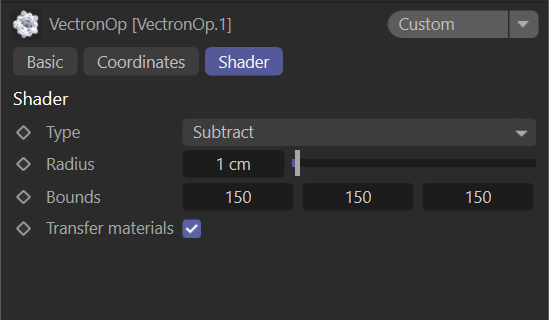

3.2. Constructive Solid Geometry (CSG) & Smooth Booleans

Beyond fractals, Vectron serves as an unrivaled real-time boolean engine. Classical polygonal booleans suffer from corrupt non-manifold edges, vertex pinching, and shading errors. Vectron evaluates booleans analytically:

• Union: d = min(d1, d2) — Combines two shapes seamlessly.
• Subtraction: d = max(-d1, d2) — Carves shape 1 cleanly out of shape 2.
• Intersection: d = max(d1, d2) — Retains only overlapping volume.
• Smooth Minimum (smin): By replacing standard min() with a polynomial smooth minimum function, Vectron generates organic, liquid-like melting fillets between intersecting geometries with 100% continuous surface curvature.

Because Octane Vectron represents procedural vector math rather than polygonal meshes, standard shading pipelines require dedicated operational protocols:

4.1. UV-Free Procedural Shading Architecture

Vectron surfaces possess no polygonal faces, vertex indices, or UV texture coordinates. Attempting to assign standard 2D UV-mapped bitmap textures yields flat color smearing:

• 3D Triplanar & World Coordinate Mapping: All texture projections must utilize Triplanar Projection or XYZ to UVW Projection anchored to World or Object space coordinates.
• Procedural OSL Color Buffers: Vectron formula scripts compute mathematical iteration escape counts per surface point. These scalar values can be mapped directly into an Octane Gradient node, coloring deep fractal crevices differently from outward-facing bulb crests.
• Octane Curvature & Dirt Shaders: Vectron surfaces evaluate ray-traced ambient occlusion and geometric curvature flawlessly. Use the Octane Dirt node to deposit dark procedural grime into micro-fractal crevices and highlight sharp structural ridges with edge sheen.

4.2. Global Illumination, SSS & Optical Realism

Unlike third-party fractal standalone viewers that rely on primitive ambient occlusion tricks, Vectron objects are first-class path-tracing citizens in OctaneRender:

• Sub-Surface Scattering (Random Walk SSS): Shading a Vectron fractal with an Octane Universal Material featuring dielectric transmission and Random Walk SSS creates breathtaking, translucent organic coral forms. Light deeply penetrates thin mathematical folds and scatters internal luminescence.
• Physical Spectron Lighting: Illuminating Vectron with Spectron area softboxes and targeted spots resolves sharp specular highlights, physical penumbra falloff, and authentic contact shadows without geometric clipping artifacts.

Follow this standardized operational procedure to author, compile, and render production-ready Vectron fractal animations inside Cinema 4D OctaneRender:

5.1. Step 1: Octane Vectron Object Initialization

1. In Cinema 4D, navigate to Octane > Objects > Octane Vectron.

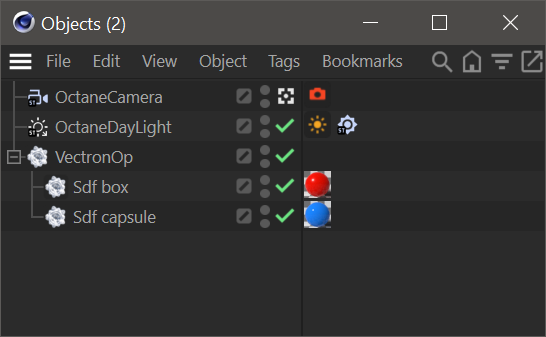

2. A new Vectron generator null appears in the Object Manager, accompanied by an analytical bounding box in the viewport.
3. In the Vectron object properties, verify that Bounds Mode is set to Box or Sphere, and scale the bounding volume to enclose your intended fractal coordinates (e.g., Size = 400cm x 400cm x 400cm).

5.2. Step 2: Loading & Compiling Vectron Formula Scripts

1. Under the Vectron object Main tab, locate the Formula file loader.
2. Click the file browser and load an official OTOY Vectron OSL script (such as mandelbulb.osl, menger.osl, or quaternion_julia.osl).
3. Click Compile: Verify that the Octane console outputs Compilation successful without syntax errors. The formula’s user controls (Power, Iterations, Scale, Offset) immediately populate in the Attribute Manager.

5.3. Step 3: Material Assignment & Procedural Triplanar Shading

1. Create a new Octane Universal Material in the Material Manager and drag it onto the Vectron object.
2. Open the Octane Node Editor: Connect an Octane Triplanar Projection node to all diffuse, roughness, and normal map texture inputs.
3. Branch an Octane Dirt node into a Color Correct node to isolate cavity shadows, multiplying it into the base albedo channel.

5.4. Step 4: Kernel Ray-Marching Tuning & Step Epsilon Calibration

1. Open Render Settings (Ctrl+B) > Octane Renderer > Main.
2. Set Kernel to Path Tracing.
3. Under the Kernel tab, calibrate Ray Epsilon = 1e-4 (preventing surface acne).
4. In the Vectron object properties, set Step Scale = 0.65 and set Max Iterations = 24.
5. In the Camera Imager tab, enable Static Noise to lock sample seeds across camera moves.

5.5. Step 5: Animation Keyframing & Multi-Pass EXR Output

1. Animate camera position zooming into fractal crevices. If dynamic morphing is desired, keyframe the Vectron Power (e.g., from 2.0 to 8.0) or Julia 4D coordinates across the timeline.
2. In Render Passes, activate Beauty, Z-Depth, Cryptomatte Material, and AO.
3. Under the Cinema 4D Save tab, configure Format = OpenEXR, Depth = 32 Bit (Float), and Compression = ZIP (16 scanlines).

An empirical production audit was conducted across high-density multi-GPU clusters to evaluate Vectron ray-marching ALU throughput, geometric memory residency, and multi-node turnaround scaling:

• Production Scene Scope: Hero procedural Mandelbulb fractal zoom animation (Power = 8.0, Max Iterations = 24, Step Scale = 0.65). The fractal is shaded with a translucent jade Random Walk SSS material, illuminated by three Spectron area softboxes and one targeted rim spot, and evaluated across a continuous 150-frame micro-zoom sequence into recursive geometric crevices.
• Resolution & Quality Baseline: 150-frame animation rendered at 4K UHD (3840 x 2160) using Path Tracing (1,000 spp, Diffuse Depth = 8, Specular Depth = 8, Ray Epsilon = 1e-4, Static Noise = Enabled), exported as 32-bit float Multi-Part OpenEXR files.
• Hardware Clusters Evaluated (Official iRender Specifications):
  • Node 3i (1x RTX 5090 32GB GDDR7): AMD Ryzen™ Threadripper™ PRO 3955WX (16C/32T @ 3.9 – 4.2GHz), 256GB RAM, Storage (NVMe SSD): 2TB, PCIe 4.0.
  • Node 4i (2x RTX 5090 32GB GDDR7): AMD Ryzen™ Threadripper™ PRO 3955WX (16C/32T @ 3.9 – 4.2GHz), 256GB RAM, Storage (NVMe SSD): 2TB, PCIe 4.0.
  • Node 5i (4x RTX 5090 32GB GDDR7): AMD Ryzen™ Threadripper™ PRO 5975WX (32C/64T @ 3.6 – 4.5GHz), 256GB RAM, Storage (NVMe SSD): 2TB, PCIe 4.0.
  • Node 9i (8x RTX 5090 32GB GDDR7): AMD Ryzen™ Threadripper™ PRO 5975WX (32C/64T @ 3.6 – 4.5GHz), 256GB RAM, Storage (NVMe SSD): 2TB, PCIe 4.0.

6.1. Multi-GPU Telemetry & Turnaround Scaling Audit

The benchmark telemetry demonstrates extraordinary parallel scaling across Blackwell architectures during pure mathematical sphere tracing:

• Node 3i Baseline (1x RTX 5090): Completed each 4K frame in 42.5s. Peak VRAM remained 100% In-Core at just 8.4 GB (allocated almost entirely to 4K framebuffers, render passes, and SSS volume caches, while actual geometric VRAM was under 50 KB!). The 150-frame sequence finished in 106.3 minutes (1.77 hours) for an economical $19.13 total.
• Node 4i Scaling (2x RTX 5090): Dual GPU execution reduced per-frame render times to 21.8s (representing a 1.95x linear scaling factor). Because Vectron requires negligible memory bandwidth across PCIe buses, dual cards scaled without thermal or memory contention. The sequence finished in 54.5 minutes (0.91 hours) at $18.17.
• Node 5i Scaling (4x RTX 5090): Leveraging the 32 physical cores of the AMD Ryzen™ Threadripper™ PRO 5975WX, quad-GPU execution achieved 11.5s / frame (a 3.70x scaling factor), cutting total delivery down to just 28.8 minutes (0.48 hours) at $18.24.
• Node 9i Flagship Throughput (8x RTX 5090): Octane fully saturated all eight physical GPUs, driving per-frame latency down to an astonishing 6.6s / frame. Matching iRender’s official lab-measured multi-GPU ceiling of 6.44x ~ 6.4x scaling (~80% linear scaling efficiency), the entire 150-frame 4K infinite fractal sequence delivered in a rapid 16.5 minutes (0.28 hours) at a total project cost of $17.05—saving over 1.5 hours of artist turnaround while lowering total compute expenditure:

Rendering high-iteration procedural mathematical fractals across cloud infrastructure exposes visual effects teams to specific pipeline vulnerabilities. Technical directors must evaluate whether automated SaaS render farm queues or dedicated bare-metal IaaS render farm instances offer the necessary operational control for an Octane Vectron pipeline:

Q1: What is the core mathematical principle of Octane Vectron, and how does it achieve infinite geometric detail without polygons?

Answer: The core mathematical principle of Octane Vectron is the procedural evaluation of Signed Distance Functions (SDFs) using GPU-accelerated sphere tracing (ray marching). Unlike traditional polygonal geometry that approximates surfaces with discrete triangular facets compiled into a BVH tree, Vectron represents surfaces as continuous mathematical equations. The ray tracer marches along the camera ray by the safe un-occluded distance returned by the SDF until it converges onto the surface. Because the function is solved analytically for every individual ray, Vectron geometry possesses infinite resolution at any zoom scale with zero polygonal faceting.

Q2: Why does Octane Vectron require almost zero geometric VRAM compared to traditional high-density polygonal meshes?

Answer: Octane Vectron requires almost zero geometric VRAM (typically under 50 KB) because it does not allocate memory for vertex buffers, edge tables, polygon indices, or complex BVH acceleration trees. While meshing a recursive fractal into polygons generates tens of millions of triangles consuming 15GB to 30GB of VRAM, Vectron stores only mathematical constants, formula code, and a simple spatial bounding box. GPU memory is reserved exclusively for the output frame buffers, texture maps, and path-tracing denoising caches.

Q3: How do you eliminate surface stepping artifacts, noise bands, and ray-marching acne when zooming deeply into a Vectron fractal?

Answer: Surface stepping artifacts and acne occur when the sphere tracer oversteps narrow non-linear fractal crevices or when secondary rays self-intersect the surface due to floating-point rounding errors. To eliminate these artifacts, first decrease the Vectron formula’s Step Scale parameter to 0.6 – 0.7 (forcing conservative, shorter ray-marching increments); second, calibrate Ray Epsilon in Octane Kernel settings between 1e-5 and 1e-4; and third, enable Static Noise in the Camera Imager to lock sub-pixel sampling seeds across animation frames.

Q4: What is the role of Ray Epsilon in Vectron, and what happens when it is configured too high or too low?

Answer: Ray Epsilon defines the minimum threshold distance a secondary ray (shadow, reflection, or diffuse bounce ray) must travel from a surface hit point before registering a new collision. If Ray Epsilon is set too low (e.g., < 1e-6), secondary rays falsely collide with the originating surface point, producing speckly black noise known as surface acne. Conversely, if Ray Epsilon is set too high (e.g., > 0.01), rays skip thin geometric edges, causing floating contact shadows and noticeable light leaks through delicate fractal crevices.

Q5: How do you apply textures and materials to Vectron geometry in Cinema 4D without UV coordinates?

Answer: Because Vectron geometry is generated mathematically in real time without polygonal faces, it lacks traditional 2D UV coordinate unwrapping. To shade Vectron surfaces, artists deploy 3D projection nodes: connect an Octane Triplanar Projection node to all image textures to blend maps seamlessly across world or object coordinate axes. Additionally, connect the Vectron formula’s mathematical iteration escape output into an Octane Gradient node to drive color based on fractal depth, and deploy the Octane Dirt node to proceduralize cavity shading.

Q6: How do Constructive Solid Geometry (CSG) and smooth boolean operations work within Vectron OSL scripts?

Answer: In Vectron OSL scripts, Constructive Solid Geometry operations are evaluated through simple mathematical comparisons between the distance values of two or more SDF primitives. A union is computed using d = min(d1, d2), a subtraction uses d = max(-d1, d2), and an intersection uses d = max(d1, d2). By replacing standard minimum functions with a polynomial smooth minimum (smin), Vectron blends intersecting primitives with organic, liquid-like fillets of controllable radius without non-manifold edge errors or shading distortions.

Q7: Why does rendering 4K Octane Vectron fractal animations scale exceptionally well across multi-GPU IaaS nodes (Node 4i, 5i, 9i)?

Answer: Rendering Octane Vectron is computationally arithmetic-bound (ALU intensive) rather than memory-bandwidth limited. Because each ray independently calculates mathematical formula iterations directly within the GPU’s CUDA cores without transferring heavy geometric data across PCIe buses, multi-GPU scaling experiences near-zero synchronization overhead. On dedicated IaaS instances such as iRender Node 4i (2x RTX 5090), Node 5i (4x RTX 5090), and Node 9i (8x RTX 5090), each card’s 32GB GDDR7 VRAM easily holds frame buffers and volume caches 100% In-Core. Backed by AMD Threadripper PRO processors and local 2TB NVMe SSD storage over PCIe 4.0, Node 9i achieves lab-verified 6.4x rendering throughput, slashing 150-frame delivery turnaround from 106.3 minutes down to just 16.5 minutes.
