September 9, 2020 iRender

Nvidia Ampere: releasing RTX 3090, RTX 3080, and RTX 3070 (Part 1)

The new Nvidia Ampere RTX 30-series graphics cards have been announced… and they’re ray tracing monsters.

Powered by Ampere, NVIDIA’s 2nd gen RTX architecture, GeForce RTX 30 Series graphics cards feature faster 2nd gen Ray Tracing Cores, faster 3rd gen Tensor Cores, and new streaming multiprocessors that together bring stunning visuals, faster frame rates, and AI acceleration for gamers and creators.

Nvidia Ampere GeForce RTX 30 Series GPUs also feature several world firsts: they’re the first gaming-class graphics cards with up to 24GB of new, blazing-fast GDDR6X VRAM; they’re the first GPUs with HDMI 2.1, for 4K high refresh rate and 8K gaming; they’re the first discrete GPUs with support for the AV1 codec, enabling you to watch high-resolution streams using significantly less bandwidth; and our Founders Edition cards are the first with innovative dual axial flow through cooling solutions.

GeForce RTX 30 Series Graphics Cards: The Essential Specs

Starting September 17th, NVIDIA and our partners will release the GeForce RTX 3090, GeForce RTX 3080, and GeForce RTX 3070:

Graphics Card Name GeForce RTX 3090 GeForce RTX 3080 GeForce RTX 3070
GPU Name Ampere GA102-300 Ampere GA102-200 Ampere GA104-300
Process Node Samsung 8N Samsung 8N Samsung 8N
CUDA Cores 10,496 8,704 5,888
Boost Clock 1,700 MHz 1,710 MHz 1,730 MHz
Memory Bus 384-bit 320-bit 256-bit
Bandwidth 936 GB/s 760 GB/s 512 GB/s
Memory Speed 19.5 Gbps 19 Gbps 16 Gbps
TDP 350W 320W 220W
Recommended PSU 750W 750W 650W
Prices Starting At $1499 $699 $499
Release Date September 24 September 17 Available October

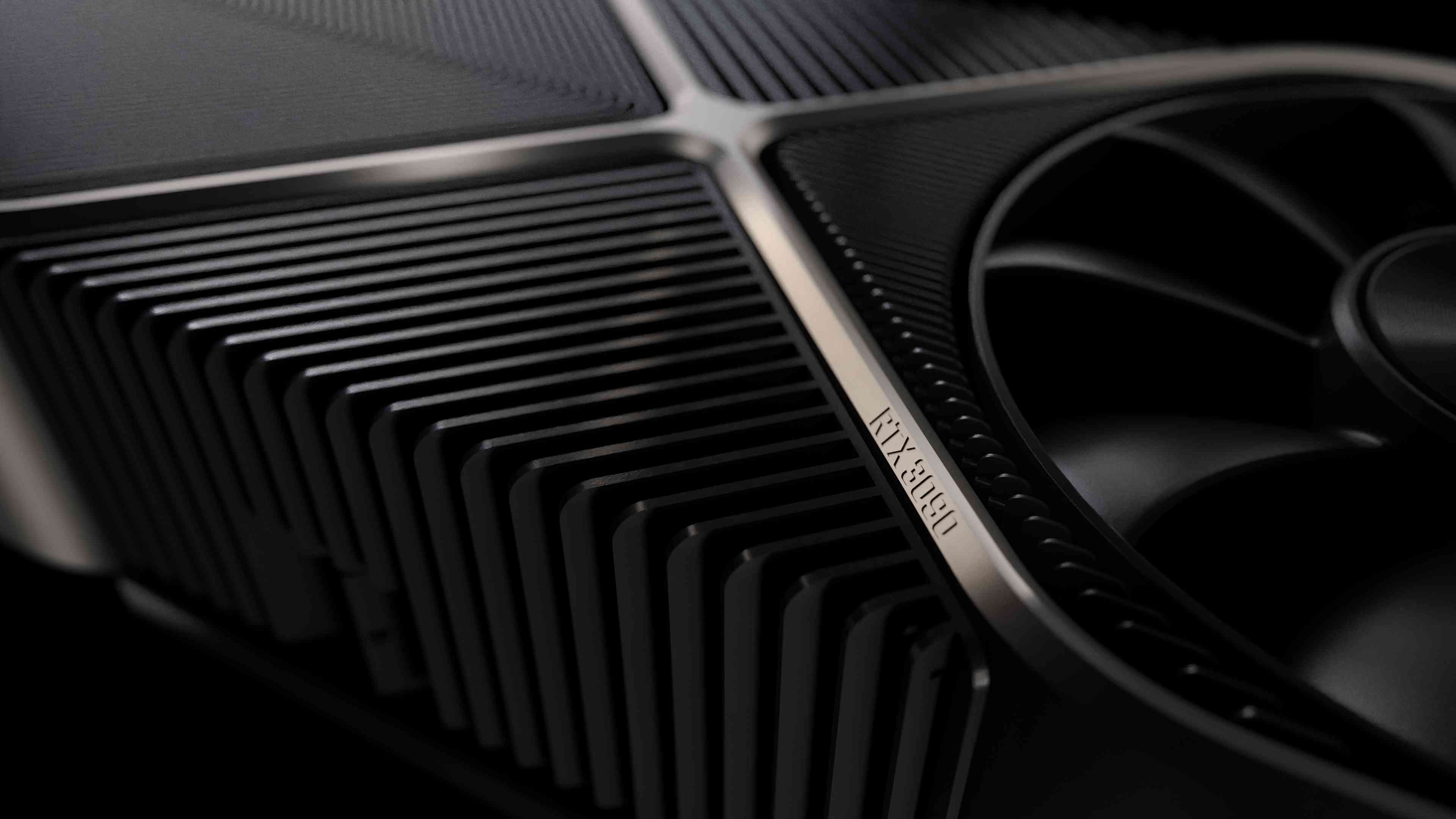

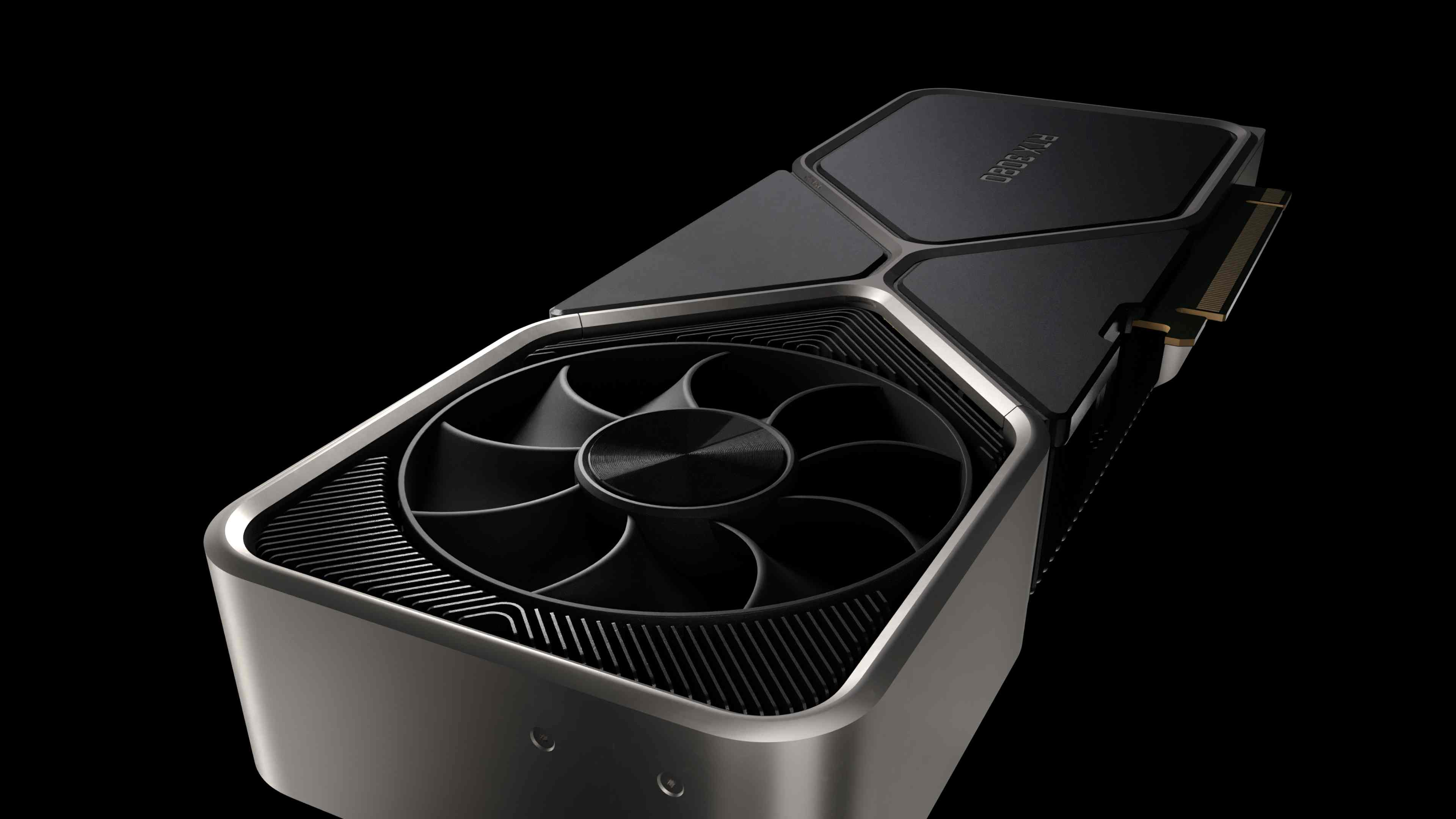

GeForce RTX 30 Series Founders Edition Graphics Cards

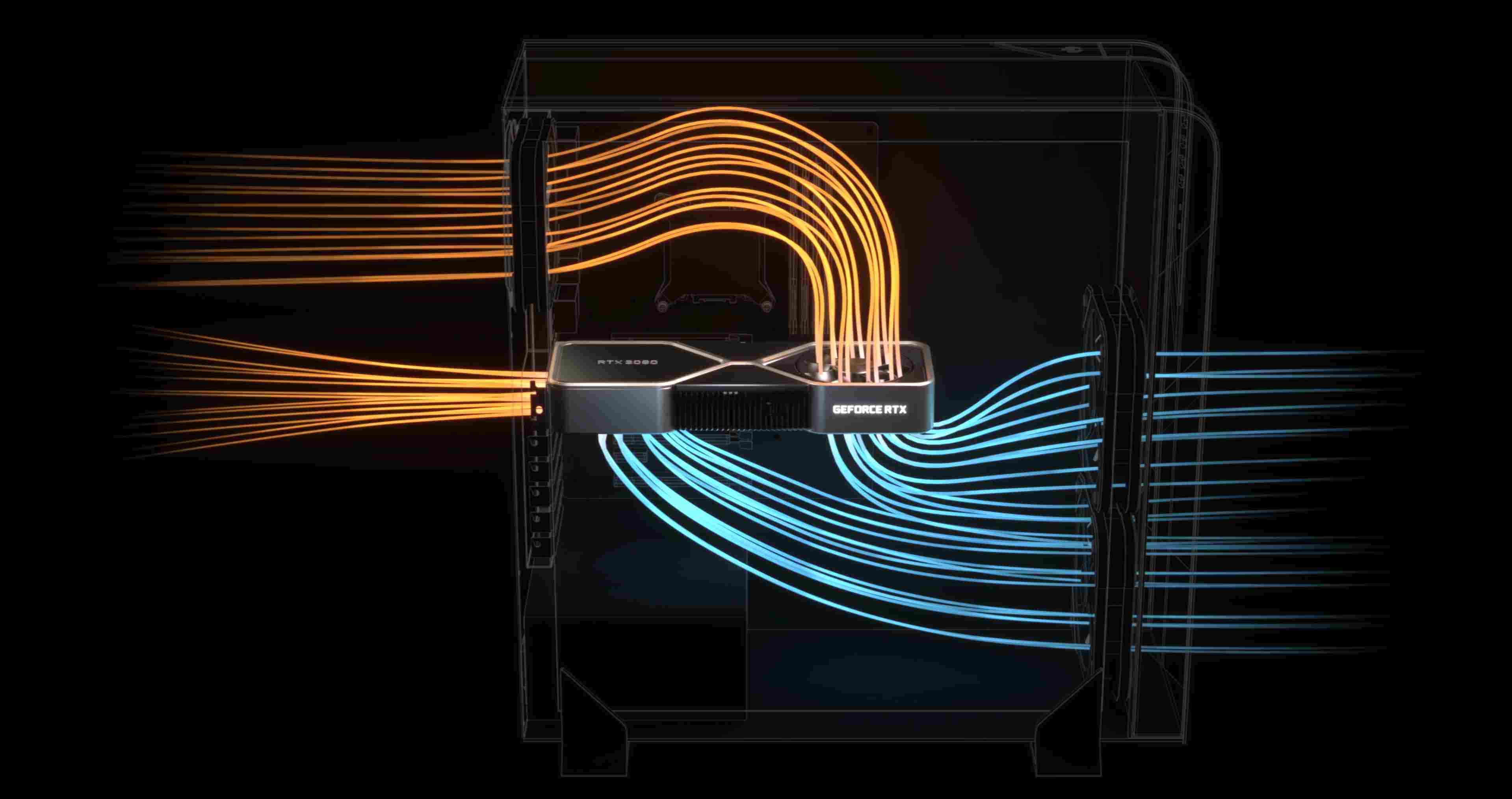

Our Founders Edition GeForce graphics cards feature excellent cooling and stunning designs that make your PC a striking showcase. For our new GeForce RTX 30 Series, we’ve created an innovative dual axial flow through the cooling solution, featuring two fans – one at the left front, and another on the right rear that draws air through the card (the GeForce RTX 3070 flow-through design differs slightly, with its fans both mounted on the top of the card).

As heat is drawn away from components into the hybrid vapor chamber, it is efficiently distributed across the length of the card and throughout the massive aluminum fin stack. The left fan pushes air heated by the fin stack out through extra-large GPU bracket vents, while the right fan draws the air towards the top chassis exhaust.

Ordinarily, GPU circuit boards (PCBs) are the length of the graphics card. So to insert a full-sized fan in the rear of the card we had to get creative! To that end, our engineers designed a much smaller PCB, shrank the NVLink and power connectors, and still managed to pack in 18-phases for improved power delivery. Don’t worry, we included an adapter that allows Founders Edition cards to work with users’ existing power supplies.

These changes, among others, gave us the space to chop a large fan-sized chunk from the PCB, giving our dual axial flow through cooling solution plenty of space to breathe.

Acoustically, the new Founders Edition design is quieter than traditional dual axial coolers, while still delivering nearly 2x the cooling performance of previous generation solutions. The aforementioned NVLink and power design changes help here, creating more space for airflow through the largest fin stack seen to date, and the larger bracket vents improve airflow in concert with individually shaped shroud fins. In fact, wherever you look, every aspect of the Founders Edition cards are designed to maximize airflow, minimize temperatures, and enable the highest levels of performance with the least possible noise.

These card-wide cooling innovations allow us to give you more performance, without a corresponding increase in temperature or noise over prior-generation graphics cards.

See more: Higher Render Speed with 6 x RTX 2080 Ti servers at iRender farm

Source: nvidia
